7-215079-8
Manufacturer:
TE Connectivity
Mfr.Part #:
7-215079-8
Datasheet:
Description:

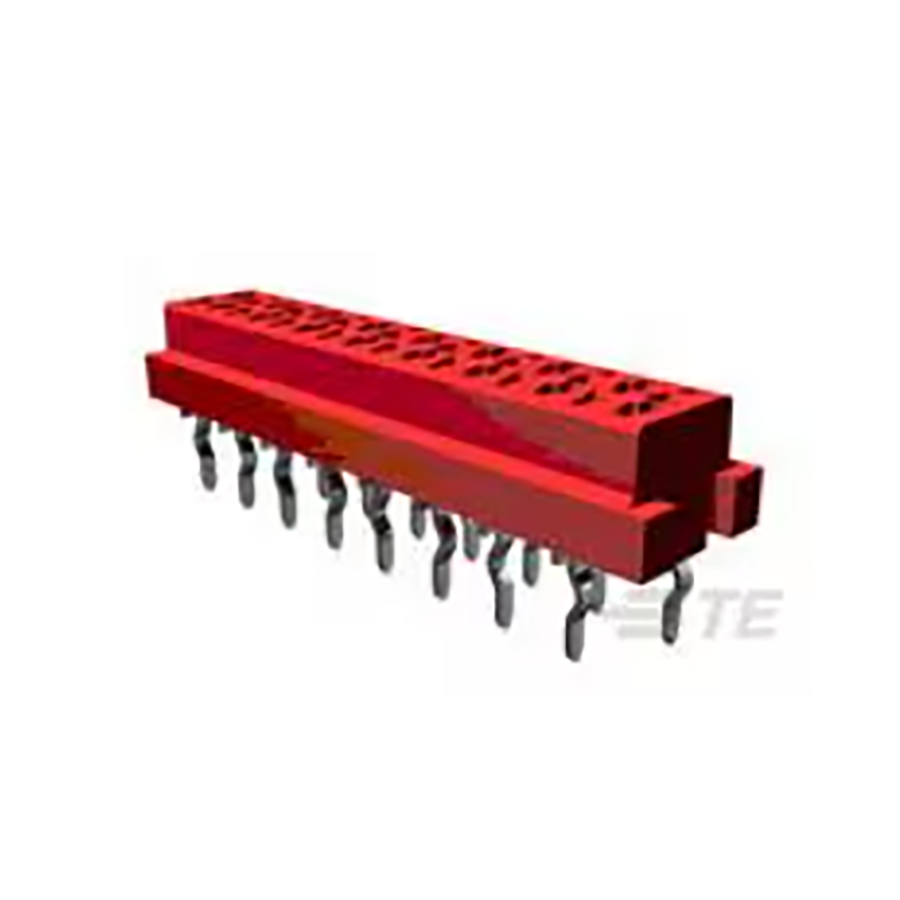

Board to Board Connectors Through Hole Receptacle Number of Positions:8 Number of Rows:2 Row Spacing:1.5 mm Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 12.192 mm |
| Width | 12.2 mm |
| Termination | Solder Pin |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 4.064 mm |
| Material | Polyester, Thermoplastic |
| Packaging | Box |
| Voltage Rating | 230 V |
| Depth | 5.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1.27 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.0988 mm |
| Contact Material(Contact Finish) | CuSn |
| Pitch | 1.27 mm |
| Current Rating | 1.5 A |
| Working Voltage | 100 V |
| Flammability Rating | UL94V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 100 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Red |
| Gender | Receptacle |
| Number of Contacts | 8 |
| ELV | Compliant |
| Number of Poles | 8 |
| Connector Type | Receptacle |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 1.5 mm |
| Housing Material | Polyester |
| Contact Resistance | 10 mΩ |
| Contact Current Rating | 1.5 A |
| Housing Color | Red |
| Plating Thickness | 5 nm |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Mating Connector Lock | Without |
| PCB Mount Retention | With |
Stock: 1445
Distributors
pcbx
pcbxUnit Price$0.64694
Ext.Price$0.64694
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.64694 | $0.64694 |
| 10 | $0.53818 | $5.38180 |
| 25 | $0.50708 | $12.67700 |
| 50 | $0.47778 | $23.88900 |
| 100 | $0.45017 | $45.01700 |
| 300 | $0.42416 | $127.24800 |
| 500 | $0.39964 | $199.82000 |
| 1000 | $0.38334 | $383.34000 |
